Templates, Interpolation and Directives

Overview

Building a template

Using a Component as a Directive

Building with interpolation

Adding logic and directives (and Angular built-in directives)

Building a Template

Using:

• Inline templatewith single quotes ""
• Inline templatewith back ticks (``) of ES 2015
• Linked template using templateUrl: './product-list.component.html'

Build the Linked template

Create the HTML template into: /app/products/product-list.component.html

<div class="panel panel-primary">
    <div class="panel-heading">
        Product List
    </div>
    <div class="panel-body">
        <div class="row">
            <div class="col-md-2">Filter by:</div>
            <div class="col-md-4">
                <input type="text" />
            </div>
        </div>
        <div class="row">
            <div class="col-md-6">
                <h3>Filtered by:</h3>
            </div>
        </div>
        <div class="table-responsive">
            <table class="table">
                <thead>
                    <tr>
                        <th>
                            <button class="btn btn-primary">
                                Show image
                            </button>
                        </th>
                        <th>Product</th>
                        <th>Code</th>
                        <th>Available</th>
                        <th>Price</th>
                        <th>5 Star rating</th>
                    </tr>
                </thead>
                <tbody>
                </tbody>
            </table>
        </div>
    </div>
</div>

Building the Component

Create the class Component into: /app/products/product-list.component.ts

import { Component } from '@angular/core';

@Component({
    selector: 'pm-products',
    templateUrl: './product-list.component.html'
})
export class ProductListComponent {

}

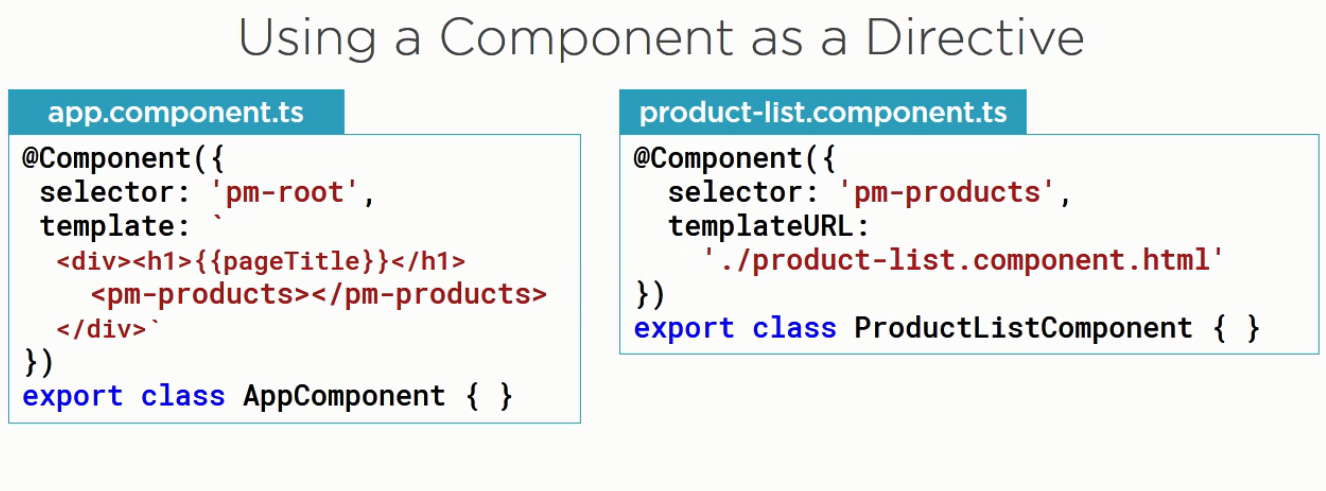

Using a Component as a Directive

When a Component has a selectorthen this component is used as Directive. This means that we can insert this component template into any other component template by using the selector as an HTMLtag.

If directive is not defined in module in which is used, this error:

Error: Template parse errors:
'pm-products' is not a known element:
1. If 'pm-products' is an Angular component, then verify that it is part of this module.
2. If 'pm-products' is a Web Component then add 'CUSTOM_ELEMENTS_SCHEMA' to the '@NgModule.schemas' of this component to suppress this message. ("
    Welcome to {{pageTitle}}!!

  </h1>

  [ERROR ->]<pm-products></pm-products>

</div>

"): ng:///AppModule/AppComponent.html@5:2

Declare the component in the module where is used (app.module.ts):

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';

import { AppComponent } from './app.component';
import { ProductListComponent } from './products/product-list.component';

@NgModule({
  declarations: [
    AppComponent,
    ProductListComponent
  ],
  imports: [
    BrowserModule
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

It is used in app root component (in the view app.component.html):

<!--The whole content below can be removed with the new code.-->
<div style="text-align:center">
  <h1>
    Welcome to {{pageTitle}}!!
  </h1>
  <pm-products></pm-products>
</div>

Binding with Interpolation

aa

References

http://getbootstrap.com/
